Myoblast Cell Interaction with Polydopamine Coated Liposomes
© The Author(s) 2012
Received: 6 September 2011
Accepted: 29 November 2011
Published: 9 February 2012
Liposomes are widely used, from biosensing to drug delivery. Their coating with polymers for stability and functionalization purposes further broadens their set of relevant properties. Poly(dopamine) (PDA), a eumelanin-like material deposited via the “self”-oxidative polymerization of dopamine at mildly basic pH, has attracted considerable interest in the past few years due to its simplicity, flexibility yet fascinating properties. Herein, we characterize the coating of different types of liposomes with PDA depending on the presence of oleoyldopamine in the lipid bilayer and the dopamine hydrochloride concentration. Further, the interaction of these coated liposomes in comparison to their uncoated counterparts with myoblast cells is assessed. Their uptake/association efficiency with these cells is determined. Further, their dose-dependent cytotoxicity with and without entrapped hydrophobic cargo (thiocoraline) is characterized. Taken together, the reported results demonstrate the potential of PDA coated liposomes as a tool in biomedical applications.
Liposomes are among the most prominent objects employed in bionanotechnology. In addition to their application as drug delivery vehicles [1, 2], they are also employed in biosensing as labels  or as carriers for membrane proteins . Further, they have recently been considered as sub-compartments in polymer capsules towards therapeutic cell mimicry [5–7] or as potential drug deposits embedded in polymer films on surfaces [8, 9].
The combination of polymers with liposomes is interesting in many aspects; beneficial properties from both materials are preserved, while shortcomings can be overcome. Coating liposomes with poly(ethylene glycol) (PEG) using PEGylated lipids is the typical and to date the most successful way to increase the circulation time [10, 11] when liposomes are used in drug delivery. Alternative coatings such as mucoadhesive polymers, e.g. chitosan, have been considered to improve the mucoadhesive properties  or modifications based on the sequential deposition of interacting polymers onto liposomes . Although improved properties in terms of stability and cargo retention have been observed in the latter case, the separation of the free polymer during the assembly process is a limiting step. Alternatively, Ali et al.  proposed a reversible addition-fragmentation chain transfer (RAFT)-based approach by initially depositing a short polyelectrolyte onto liposomes. The polymer shell thickness was increased by taking advantage of the “living” RAFT moieties which allowed for the further polymer chain extension in the presence of monomers. Once initiated, the polymer shell is “self”-deposited, making this approach potentially widely applicable. On the other hand, the success of the coating relies on the synthesis and deposition of the first polyelectrolyte.
Polydopamine (PDA) , a dopamine-derived synthetic polymer, has recently attracted considerable interest as a flexible coating toward biomedical applications . PDA is deposited via a “self”-oxidative process at slightly basic pH on virtually any substrate, independent of material and shape. Many fundamental aspects of PDA have yet to be discovered and characterized, but its photoprotective or electrical properties and options for straight-forward post-functionalization using amines or thiols are making this material highly attractive. Thus, PDA coatings have been considered in a variety of different applications, ranging from controlling cell/surface interactions e.g. rendering hydrophobic surface cell adhesive  to building blocks in biosensing platforms e.g. as matrix polymer for molecular imprinting , and for life cell encapsulation . PDA capsules have been considered using particles [20–23] or oil emulsion droplets  as templates. Although cargo loading in PDA capsules has been shown, no impact on the cell viability due to the presence of the cargo has been reported and only the absence of inherent cytotoxicity has been demonstrated. Also, the requirement to remove the core potentially limits these approaches. We recently considered PDA coatings for surface-mediated drug delivery by embedding liposomes into the polymer film and demonstrated the uptake of fluorescent lipids from the surface . In this context, we employed X-ray photo spectroscopy to ensure the PDA formation on the liposome coated surfaces, but no further detailed characterization of PDA/liposome interactions has yet been performed.
This report is the first detailed characterization of liposome/PDA interaction toward the potential application as drug delivery vehicles.
Sodium chloride (NaCl), tris(hydroxymethyl)aminomethane (TRIS) buffer, dimethyl sulfoxide (DMSO), dopamine hydrochloride (dopamine), phosphate buffered saline (PBS), and chloroform were purchased from Sigma-Aldrich. Zwitterionic lipids 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine (POPC, 25 mg/mL), negatively charged lipids 1-palmitoyl-2-oleyl-sn-glycero-3-phospho-l-serine (sodium salt) (POPS, 25 mg/mL), positively charged lipids 1-palmitoyl-2-oleoyl-sn-glycero-3-ethylphosphocholine (POEPC, 25 mg/mL), and fluorescent lipids 1-oleoyl-2-[6-[(7-nitro-2-1,3-benzoxadiazol-4-yl)amino]hexanoyl]-sn-glycero-3-phosphocholine (NBD-PC) dissolved in chloroform were obtained from Avanti Polar Lipids, USA. Thiocoraline (TC) was isolated and purified by PharmaMar, S.A. (Colmenar Viejo, Madrid, Spain).
Two types of buffers were used throughout all of the liposome coating experiments: TRIS1 buffer consisting of 10 mM TRIS (pH 8.5) and TRIS2 buffer consisting of 10 mM TRIS and 150 mM NaCl (pH 7.4). All water used in these experiments was tapped from the Millipore water system (Milli-Q gradient A 10 system, resistance 18 MΩ cm, TOC < 4 ppb, Millipore Corporation, USA).
2.2 Synthesis of Oleoyldopamine
Oleoyl chloride was synthesized according to standard acid chloride synthesis via oxalyl chloride obtaining a similar yield as published .
Dopamine hydrochloride (1.89 g, 9.97 mmol) was dissolved in dry dimethylformamide (DMF, 25 mL) at room temperature (RT), under argon in a two neck round bottom flask (100 mL). Triethylamine (TEA, 1.51 g, 14.9 mmol) was added dropwise under stirring and then cooled to −20°C in an ethanol/dry ice bath. Oleoyl acid chloride (1.5 g, 4.98 mmol) was dissolved in dry dichloromethane (DCM) and added dropwise over 1 h to the reaction at −20°C. After addition, the heterogeneous mixture was allowed to come to 0°C for 40 min, and then brought to RT and left over night.
The reaction mixture was diluted with 75 mL DCM and washed 2× with 0.5 M potassium bisulfate (50 mL), water (25 mL), brine (50 mL) and filtered through silica. The material was dried under vacuum to solidify to an off-white waxy solid. This was dissolved in methanol and precipitated with the addition of water (2×) to give white crystals, 1.58 g (88.9% yield), HPLC purity >99%.
1H NMR (CDCl3, 400 MHz) δ 7.75, s, 1H, OH; 6.81, d, J 8.0 Hz, 1H, CH (Ar); 6.75, d, J 2.0 Hz, 1H, CH (Ar); 6.56, dd, J 8.0, 1.9 Hz, 1H, CH (Ar); 6.07, s, 1H, OH; 5.63, t, J 5.6 Hz, 1H, NH; 5.34, m, 2H, =CH; 3.48, m, 2H, CH2N; 2.69, t, J 7.1 Hz, 2H, CH2Ar; 2.15, m, 2H, CH2CO; 1.99, m, 4H, CH2CH=; 1.58, m, 2H, CH2CH2CO; 1.26, m, 20H, CH2; 0.88, t, J 6.8 Hz, 3H, CH3.
2.3 Liposome Formation
Unilamellar liposomes were prepared by evaporation of the chloroform of the lipid solutions under vacuum for 1 h. Zwitterionic liposomes consisted of 2.5 mg POPC lipids with 0 wt% OD (L OD_0 zw ), 0.5 wt% OD (L OD_0.5 zw ), or 2.5 wt% OD (L OD_2.5 zw ). Negatively charged liposomes were made from 0.5 mg POPS and 2 mg POPC lipids with 0 wt% OD (L OD_0 − ), 0.5 wt% OD (L OD_0.5 − ), or 2.5 wt% OD (L OD_2.5 − ). Positively charged liposomes consisted of 0.5 mg POEPC and 2 mg POPC lipids with 0 wt% OD (L OD_0 + ), 0.5 wt% OD (L OD_0.5 + ), or 2.5 wt% OD (L OD_2.5 + ). For fluorescently labelled liposomes (NBDL), 0.5 wt% of NBD-PC was added to the lipid solution. Thiocoraline (TC) loaded liposomes (TCL) were assembled by adding 100 μL (0.1 mg/mL) TC in chloroform to the lipid mixture prior to drying. This TC concentration was chosen to ensure the highest amount of incorporated cargo into the lipid membrane of the liposomes based on our previous reports [29, 30]. Thus, increasing TC concentration above 0.1 mg/mL does not results in an increase in the amount of liposome-loaded TC. The dried lipid film was rehydrated with 1 mL TRIS1 buffer and the solution was extruded through 100 nm filters (11 times).
2.4 PDA Coating of Liposomes
The nine types of liposomes were coated with PDA according to the following protocol. 10 mg/mL dopamine stock solution in TRIS1 buffer was prepared and used as is or diluted to two different dopamine concentrations (2 and 5 mg/mL) using TRIS1 buffer. Typically, 125 μL of liposome solution was mixed with 125 μL dopamine solution leading to dopamine concentrations of D1 = 1 mg/mL, D2.5 = 2.5 mg/mL and D5 = 5 mg/mL during coating. Three control samples of 125 μL dopamine (2, 5 and 10 mg/mL) mixed with 125 μL TRIS1 buffer were run in parallel. The samples were permanently shaken during the coating process. The size and polydispersity (PD) of the samples was determined at different time points by diluting 30–50 μL sample solution in 700 μL TRIS1 prior to measuring in a dynamic light scattering (DLS) instrument (Zetasizer nano, Malvern Instruments) using a material refractive index of 1.590 and a dispersant (water at 25°C) refractive index of 1.330. Within this paper, samples with a PD > 0.4 were considered aggregated and were discarded. As the final step, the PDA coating process was stopped and the free dopamine and small PDA aggregates in solution were removed by diluting the sample 1:1 v/v with TRIS2 buffer followed by dialysis against TRIS2 buffer overnight. This step also adjusted the buffer solution to physiological conditions.
The long-term stability of L OD_0 + and L OD_0 + D2.5 was assessed by storing them in either TRIS2 buffer or TRIS2 buffer supplemented with 2 mg/mL BSA at T = 4°C, at room temperature or at T = 37°C. Their size and PD was regularly measured by DLS over max 3 weeks.
For the subsequent experiments, L OD_0 + (supplemented with NBD-PC or TC if required) using 1 or 2.5 mg/mL dopamine (L OD_0 + D1 or L OD_0 + D2.5) and a polymerization time of 75 min was chosen. As a control, samples of L OD_0 + without dopamine but with the same dilution steps were also prepared.
2.5 Cryo-Transmission Electron Microscopy (cryo-TEM)
Samples were prepared for cryo-TEM by adsorbing 4 μl of the liposome suspension onto Quantifoil R3.5/1 holey carbon film mounted on 300 mesh copper grids (Quantifoil Micro Tools GmbH, Jena, Germany). Prior to adsorption, the grid was rendered hydrophilic by glow discharge in a reduced atmosphere of air for 10 s. The specimen was applied and after 1 min incubation on the surface, the grid was blotted and quick-frozen in liquid ethane using a Vitrobot automated plunging device (FEI Company, Eindhoven, The Netherlands).
The frozen grids were transferred to liquid nitrogen before loading into a Gatan 626 cryo-holder (Gatan, Pleasanton, CA, USA). The cryo-holder was then inserted into the stage of a Philips CM200 FEG TEM (FEI company) operated at 200 kV. Imaging was performed at cryogenic temperatures (approx. −170°C) in low-dose, bright-field mode. Electron micrographs were recorded digitally on a TVIPS 4 k × 4 k CMOS Camera (TVIPS GmbH, Gauting Germany) at given defocus values of −2.5 μm.
2.6 Cell Experiments
The C2C12 mouse myoblast cell line was used for all the experiments. The cells were cultured as monolayers in 75 cm2 culture flasks in medium (Dulbecco’s modified Eagle’s Medium with Glutamax (DMEM) supplemented with 10% fetal bovine serum, 50 U/mL penicillin, 50 μg/mL streptomycin and 1 mM sodium pyruvate, all from Invitrogen) at 37°C and 5% CO2. The cells were seeded into 96-well plates at a density of 7,500 cells/well in 200 μL medium and allowed to attach for 20 h at 37°C and 5% CO2 prior to the uptake and cell viability experiments.
2.6.1 Uptake Experiments

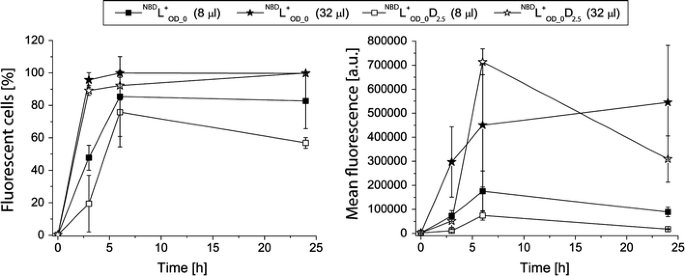

8 or 32 μL of NBDL OD_0 + or NBDL OD_0 + D2.5 solution was added per well and the cells were exposed to this liposome-containing media for different time points (3, 6 or 24 h). Then, the cells were washed 2× in 300 μL PBS, trypsinized and re-suspended in 200 μL PBS for analysis by flow cytometry. A C6 Flow Cytometer (Accuri Cytometers Inc) using an excitation wavelength of λ = 488 nm was employed to measure the fluorescence intensity of the cells upon their association with these assemblies. At least 3,000 cells were analyzed. The experiments were performed in triplicates and three independent repeats.
2.6.2 Cell Viability
The amount of encapsulated TC was quantified by fluorescence spectrophotometry. The different samples were excited at a wavelength of 365 nm and the fluorescence intensity was recorded at an emission wavelength of 547 nm. The concentration of TC was determined by correlation with a calibration curve (Figure S1, Supporting Information). The experiments were carried out using a multi plate reader (PerkinElmer). The averaged encapsulated TC in the TCL OD_0 + stock solution was 7.5 ± 1.8 μg/mL. We further assumed that the PDA coating does not affect the TC retention. TCL OD_0 + or TCL OD_0 + D1 solutions with different concentrations (between 0 and 1.2 μg/mL) of TC were added per well and incubated with the cells for 24 h. The cell viability was assessed using the Cell Counting Kit-8 (Dojindo) by adding 20 μL assay solution per well and an incubation time of 2 h prior to the absorbance read out using a multi plate reader (PerkinElmer). The results were background corrected by subtracting the absorbance reading for media only and normalized to untreated cells. The experiments were performed in triplicates and three independent repeats.
3 Results and Discussion
3.1 PDA Coating of Liposomes

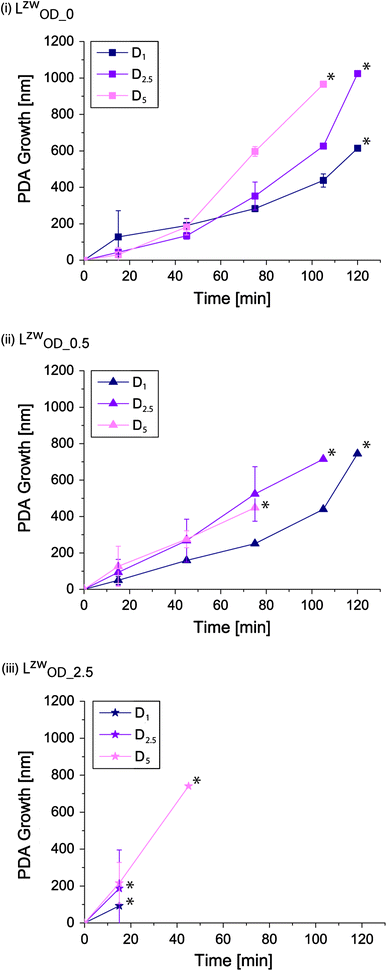

While we are not aiming at assembling PDA capsules, i.e. removal of the liposomes, but to equip the liposomes with a stabilizing adhesive layer, L OD_0 + with 1 or 2.5 mg/mL dopamine (L OD_ + D1 and L OD_ + D2.5) with a polymerization time of 75 min was chosen for all the subsequent experiments. The subsequent purification step via dialysis against TRIS2 caused the PDA coating to keep growing and yielded stable, PDA coated liposomes as shown in a representative cryo-TEM image of L OD_0 + D1 in Fig. 5b. Cryo-TEM images of L OD_0 + D2.5 looked very similar (Results not shown). It demonstrates that the liposomes remained intact without distortion or visible damage to the membrane due to the PDA coating. However, it also shows that the diameter assessed by DLS was overestimated, likely due to the effect of the light-absorbing coating on the liposomes on the DLS measurements. Further, no large PDA particles (<100 nm) were observed confirming that dialysis as a purification step is sufficient. The PDA coated liposomes were found to be stable for at least 2 weeks at 4°C, room temperature, and 37°C in TRIS2 buffer with and without BSA (results not shown).
3.2 Interaction of PDA Coated Liposomes with Myoblast Cells
In a next step, we employed the small cytotoxic hydrophobic depsipeptide thiocoraline (TC), in order to investigate in a feasibility study, if the PDA coating affects the potential cargo delivery. First, the entrapped TC did not affect the PDA coating of the liposomes, yielding TCL OD_0 + D1 with an average diameter of 393 ± 45 nm and a PD of 0.18 ± 0.02, similar to what was measured for L OD_0 + D1. A comparable dose dependent viability of the cells was observed when TC was entrapped within the lipid bilayer of the liposomes for TCL OD_0 + and TCL OD_0 + D1 (Fig. 7b), suggesting that the presence of PDA and the used coating thickness did not significantly hinder the activity and release of TC, a compound which acts by unwinding negatively supercoiled double-stranded DNA and binding to DNA by bisintercalation .
4 Summary and Conclusions
We report the coating of liposomes with PDA and assess the interaction of these assemblies with myoblast cells. The PDA growth rate depended on the charge of the used liposomes, the dopamine concentration and the presence of OD within the lipid bilayer. The coated liposomes were found to be stable in physiological conditions for at least 2 weeks and associated with myoblast cells in a similar amount as for the uncoated liposomes. Further, the PDA coating did not affect the viability of these cells unless the cytotoxic depsipeptide TC was entrapped within the lipid bilayer. Taken together, this first report on coating liposomes with PDA demonstrates their potential as drug delivery vehicle.
This work was supported by a Grant from Lundbeckfonden, Denmark and a Sapere Aude Starting Grant from the Danish Council for Independent Research, Technology and Production Sciences, Denmark (B.S). The authors thank Assistant Prof. Alexander N. Zelikin (Aarhus University) for the use of his equipment. We gratefully acknowledge Pharma Mar S.A. for providing the compound thiocoraline and Irena Krodkiewska (CSIRO—Materials Science and Engineering) for providing the compound oleoyldopamine.
Conflict of interest
The authors declare that they have no conflict of interest.
